(1) RC4WD R2 Black Transmission with disconnect
With this transmission, it allows your truck to turn in a small radius by keeping the pivot point at the rear axle and the front swings around on that axis under power with the rear locked. Essentially, no forward motion while turning, so you can turn sharper than you would even if you had 4WS (Wheel steering).
This tranny offer 3 mode, 4 wheel drive, 2 wheel drive (disconnect only) and disconnect with break (lock rear tires), base on how far your sevo throws.
Click here to watch a video about R2 Disco on Youtube
- CNC machined tranny housing
- Extremely compact size
- Heat treated steel gears
- Instant break cup
- Reinforced backplate
- Motor mounted on Disconnect side

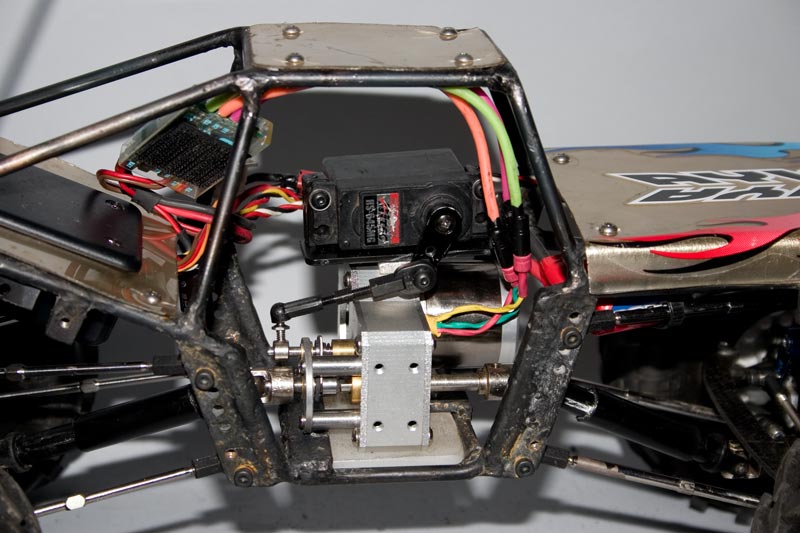

Installed on Axial AX10 (With optional skid plate and servo mount (Part # X-0153):
What's included:
- 1x R2 Black with Disconnect
- 1x 32Pitch Steel pinion gear
- 1x Clear dust cover
- 1x Optional Spring
This product require a steering kit, you can purchase part # X-0420
Click here to download the instruction manual for X-0420 (1.4MB PDF)
Click here to download the instruction manual for R2D (1.6MB PDF)
For lubrication, we recommend part # X-0317
This products comes with a optional spring, you can install it at the disconnect portion of the tranny. Since most today's servo are very powerful, it is not neccessary.
For replacement parts, please purchase part # X-0097
If you want to buy a delrin skid plate to fit this tranny on AX10, you can purchase part X-0153
Gear Ratio Chart:
8 = 30.375 9 = 27.000 10 = 24.300 11 = 22.090 12 = 20.250 13 = 18.692 14 = 17.357 15 = 16.200 16 = 15.188 17 = 14.294 18 = 13.500 19 = 12.789 20 = 12.150
